- Product name

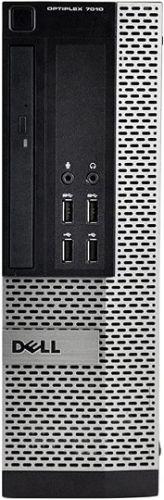

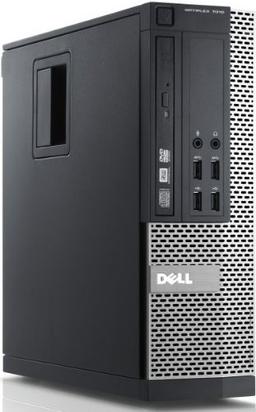

- Dell OptiPlex 7010 (Small Form Factor)
- Dimensions (H x W x D)
- 29.00 cm (11.42 inches) x 9.30 cm (3.66 inches) x 31.20 cm (12.28
- inches)
- Weight
- 6.00 kg (13.22 lb)
- Operating system
- Windows OS
- Processor & Graphic Options
- #1
- Intel® Core™ i5-3450 Processor (3.1GHz Up to Max Turbo Frequency 3.5GHz) 6 MB Intel® Smart Cache, 4-Cores 4 Threads | Intel® HD Graphics 2500
- #2
- Intel® Core™ i7-3770 Processor (3.4GHz Up to Max Turbo Frequency 3.9GHz) 8 MB Intel® Smart Cache, 4-Cores 8 Threads | Intel® HD Graphics 4000:
- #3
- Intel® Core™ i5-3470 Processor (3.2GHz Max Turbo Frequency Up to 3.6GHz) 6 MB Intel® Smart Cache, 4 Cores 4 Threads | Intel® HD Graphics 2500:
- #4
- Intel® Core™ i5-13600 Processor (2.0GHz Max Turbo Frequency Up to 5.3GHz) 24 MB Intel® Smart Cache, 14 Cores 20 Threads | Intel® UHD Graphics 770:
- #5
- Intel® Core™ i5-13500 Processor ((2.5GHz up to 4.8GHz Max Turbo Frequency) 24 MB Intel® Smart Cache, 14-Cores 20 Threads | Intel UHD Graphics 770
- Memory
- 4G RAM / 8GB RAM / 16GB RAM / 32GB RAM
- Storage
- 256GB SSD / 512GB SSD / 1TB SSD / 2TB SSD / 240GB HDD / 250GB HDD / 480GBHDD / 500GB HDD / 1TB HD / 2TB HDD
- Audio Integrated
- 2x Channel High Definition Audio
- Network Integrated
- Intel 82579LM Ethernet capable of 10/100/1000 Mb/s communication
- System Chipset
- Intel 7 Series Express Chipset
- DMA Channels
- 2x 82C37 DMA controllers with seven independently programmable channels
- BIOS Chip (NVRAM)
- 12 MB
- Bus Type
- PCIe gen2, gen3 (x16), USB 2.0, and USB 3.0
- Bus Speed - PCI Express
- x1-slot bidirectional speed – 500 MB/s | x16-slot bidirectional speed – 16 GB/s
- SATA
- 1.5 Gbps, 3.0 Gbps, and 6 Gbps
- PCI
- none
- PCI Express x1
- up to two low-profile cards
- PCI-Express x16
- up to two low-profile cards
- Mini PCI Express
- none
- Internally Accessible
- 1x 3.5-inch SATA drive bays | 2x 2.5-inch SATA drive bays
- Audio
- (Front Panel) - 1x Microphone connector and 1x Headphone connector | (Back Panel) - 1x line-out connector and 1x line-in/microphone connector | Network Adapter - 1x RJ45 connector | Serial - 1x 9-pin connector; 16550 C compatible Parallel one 25-pin connector (optional for mini-tower, desktop and small form factor)
- USB 2.0 - Front Panel
- 2x Back Panel
- USB 3.0 - Front Panel
- 2x | Back Panel
- Video
- 15-pin VGA connector | 2x 20-pin DisplayPort connectors
